Lockbolt ERSCSK06-04G C6L90-R6-4G 02622-70604 4.8mm 3/16”

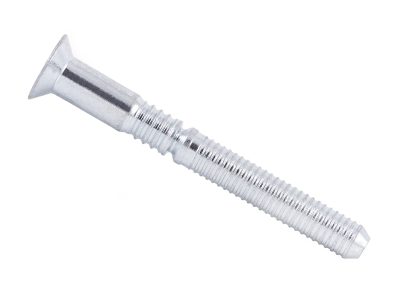

06-04 | 4.8 mm 3/16” Diameter Countersunk Head Lockbolt Steel | Zinc Grip 4.78 − 7.95 mm (0.188 − 0.313) ERSCSK06-04G, C6L90-R6-4G, 02622-70604

Part Number: ERSCSK06-04G

Diameter

Grip Range

mm

Head Style

Material

Finish

  • Pin Dimensions

Grip range

mm

'D' (min-max)
Depth to pintail

12.38 - 13.98mm

'L' (min-max)
Length inc. pintail

38.84 - 40.34mm

Head Marking

4

Min Ultimate Tensile: 7.5 (KN) | Clamping Load: 4.7 (KN) | Min Shear Strength: 7.8 (KN)
Max Hole Diameter: 5 mm

Download Pin Datasheet
  • Collars - (ordered separately)

ERSC-06G

Standard Collar, Steel Material, Zinc Finish
To suit 06 series 6 mm dia lockbolt pins

View details

ERSCF-06G

Flanged Collar, Steel Material, Zinc Finish
To suit 6 series 4.8 mm dia lockbolt pins

View details
  • Tooling suitable for ERSCSK06-04G

Tooling for Series 06 | 4.8mm (3/16″) – Pneudraulic Tool GB713 / Hydraulic Tool GB2480 – Nose assembly LB06-722-20

  • Alternative materials, finishes and head styles to ERSCSK06-04G
Samples | Pricing | Inquiries
