Lockbolt ERSSB06-03 C6LB-U6-3 02691-00603 4.8mm 3/16”

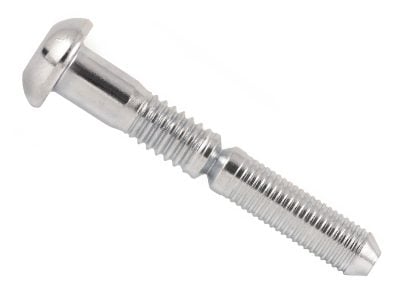

06-03 | 4.8 mm 3/16” Diameter Round Head Lockbolt SS304 | Bright Grip 3.18 − 6.35 mm (0.125 − 0.25) ERSSB06-03, C6LB-U6-3, 02691-00603

Part Number: ERSSB06-03

Diameter

Grip Range

mm

Head Style

Material

Finish

  • Pin Dimensions

Grip range

mm

'D' (min-max)
Depth to pintail

10.81 - 12.41mm

'L' (min-max)
Length inc. pintail

37.24 - 38.74mm

Head Marking

3

Min Ultimate Tensile: 6.5 (KN) | Clamping Load: 4.5 (KN) | Min Shear Strength: 8.9 (KN)
Max Hole Diameter: 5 mm

Download Pin Datasheet
  • Collars - (ordered separately)

ERSSC-06

Standard Collar, SS304 Material, Bright Finish
To suit 6 series 4.8 mm dia lockbolt pins

View details

ERSSCF-06

Flanged Collar, SS304 Material, Bright Finish
To suit 6 series 4.8 mm dia lockbolt pins

View details
  • Tooling suitable for ERSSB06-03

Tooling for Series 06 | 4.8mm (3/16″) – Pneudraulic Tool GB713 / Hydraulic Tool GB2480 – Nose assembly LB06-722-20

  • Alternative materials, finishes and head styles to ERSSB06-03
