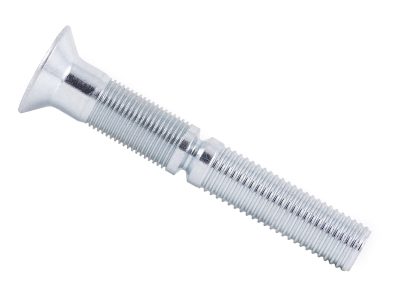

Lockbolt ERSCSK16-08G C50L90-BR16-08G – 12.7mm 1/2″

16-08 | 12.7 mm 1/2″ Diameter Countersunk Head Lockbolt Steel | Zinc Grip 12.7 − 19.05 mm (0.5 − 0.75) ERSCSK16-08G, C50L90-BR16-08G, –

Part Number: ERSCSK16-08G

Diameter

Grip Range

mm

Head Style

Material

Finish

  • Pin Dimensions

Grip range

mm

'D' (min-max)
Depth to pintail

36.7 - 37.7mm

'L' (min-max)
Length inc. pintail

85.4 - 88.4mm

Head Marking

16-8

Min Ultimate Tensile: 76 (KN) | Clamping Load: 54 (KN) | Min Shear Strength: 64 (KN)
Max Hole Diameter: 14.2 mm | Max Pin Protrusion: 9.5 mm | Max Pin Intrusion: 1.6 mm

Download Pin Datasheet
  • Collars - (ordered separately)

ERSC-16G

Standard Collar, Steel Material, Zinc Finish
To suit 16 series 12.7 mm dia lockbolt pins

View details

ERSCF-16G

Flanged Collar, Steel Material, Zinc Finish
To suit 16 series 12.7 mm dia lockbolt pins

View details
  • Tooling suitable for ERSCSK16-08G

Tooling for Series 16 | 12.7mm (1/2") – Hydraulic Tool GB2620 – Nose assembly 16-2620-41

  • Alternative materials, finishes and head styles to ERSCSK16-08G
