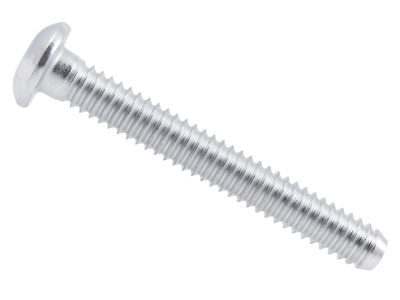

Multi Grip Lockbolt ERSMG08-10G MGPB-R8-10G 01901-70810

10 | 6.4mm 1/4″ Diameter Multi Grip Lockbolt | Steel | Zinc | Grip 1.57 – 15.88 (0.103-0.125″) ERSMG08-10G, MGPB-R8-10G, 01901-70810

Part Number: ERSMG08-10G

Diameter
Grip Range
Head Style
Material
Finish

Grip range

'GL' (min-max)

2.78 - 3.58mm

'L' (min-max)
Length inc. pintail

49.94 - 51.82mm

Min Ultimate Tensile: 13.2 (KN) | Clamping Load: 6 (KN) | Min Shear Strength: 9.78 (KN)

Multi Grip Collar, Steel Material, Zinc Finish
To suit MG08 series 6.4 mm dia lockbolt pins

Multi Grip Collar, Steel Material, Yellow Zinc Finish
To suit MG08 series 6.4 mm dia lockbolt pins

Tooling for Series MG08 | 6.4mm (1/4″) – available on request
